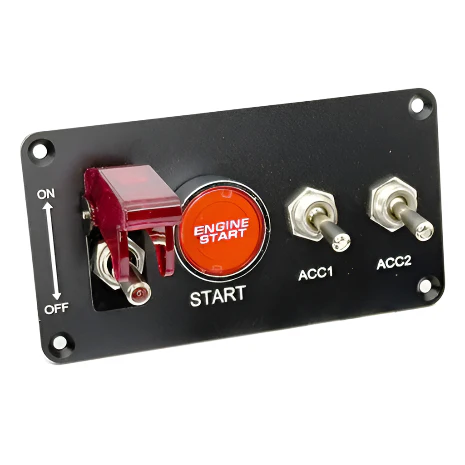

Satin Black Doomsday Four Switch Panel
Typically used for ignition and engine start.Â
12v LED illuminated ON/OFF toggle switch under the red doomsday cover, illuminated ENGINE START switch and two 20 amp on/off toggle switches with waterproof covers, for accessories e.g. fuel pumps, fire extinguisher system..

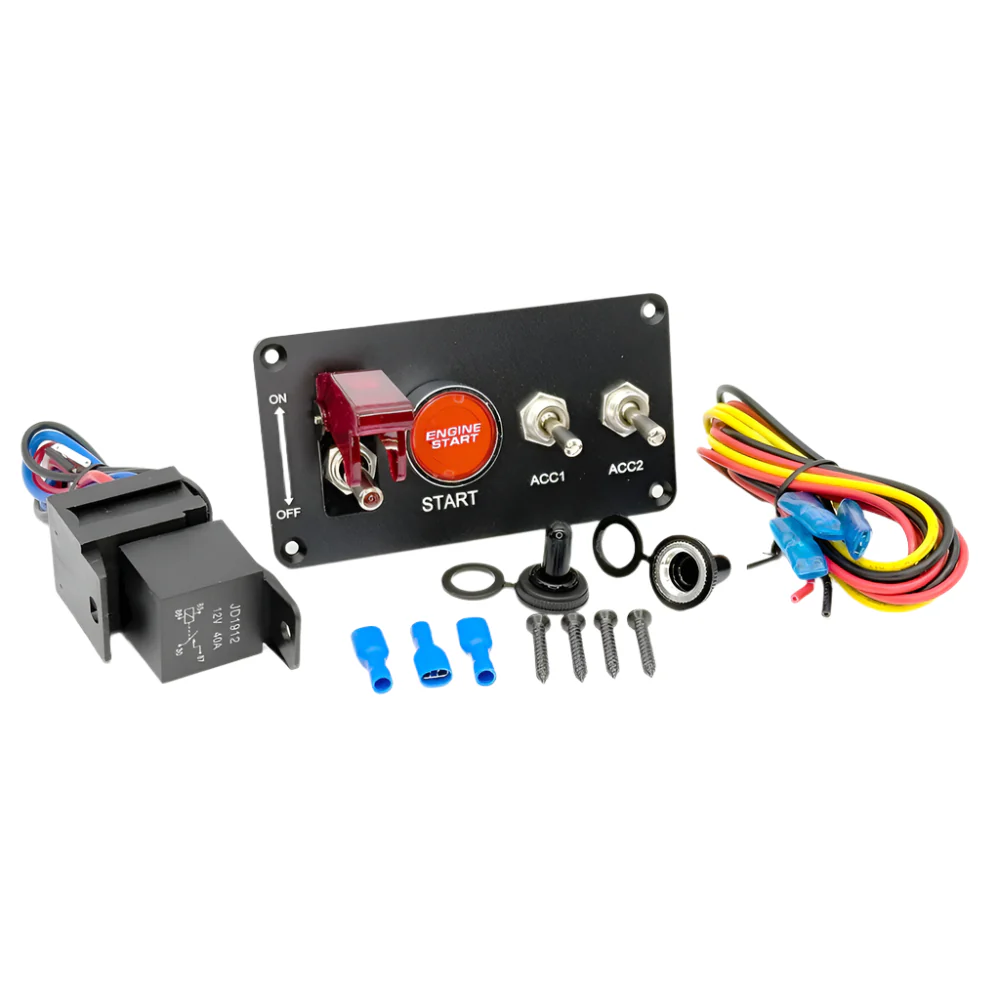

Includes a standard 40 Amp relay with relay holder and 200mm cables and 100mm red, yellow and black cables with female spade connectors on one end.Â
2.5mm thick aluminium panel 125mm x 66mm.
Four 4.2mm countersunk mounting holes at 114mm x 55mm centres.
Fixing screws.
Front projection 43mm.
Rear projection 59mm.
Weight 360gms.
SATIN BLACK DOOMSDAY FOUR SWITCH PANEL #SWPN9
Typically used for ignition and engine start.Â
12v LED illuminated ON/OFF toggle switch under the red doomsday cover, illuminated ENGINE START switch and two 20 amp on/off toggle switches with waterproof covers, for accessories e.g. fuel pumps, fire extinguisher system..
Includes a standard 40 Amp relay with relay holder and 200mm cables and 100mm red, yellow and black cables with female spade connectors on one end.Â
2.5mm thick aluminium panel 125mm x 66mm.
Four 4.2mm countersunk mounting holes at 114mm x 55mm centres.
Fixing screws.
Front projection 43mm.
Rear projection 59mm.
Weight 360gms.
SATIN BLACK DOOMSDAY FOUR SWITCH PANEL #SWPN9
Original: $15.00
-65%$15.00
$5.25Description
Typically used for ignition and engine start.Â
12v LED illuminated ON/OFF toggle switch under the red doomsday cover, illuminated ENGINE START switch and two 20 amp on/off toggle switches with waterproof covers, for accessories e.g. fuel pumps, fire extinguisher system..
Includes a standard 40 Amp relay with relay holder and 200mm cables and 100mm red, yellow and black cables with female spade connectors on one end.Â
2.5mm thick aluminium panel 125mm x 66mm.
Four 4.2mm countersunk mounting holes at 114mm x 55mm centres.
Fixing screws.
Front projection 43mm.
Rear projection 59mm.
Weight 360gms.
SATIN BLACK DOOMSDAY FOUR SWITCH PANEL #SWPN9
