Trinary Switch for Air Con

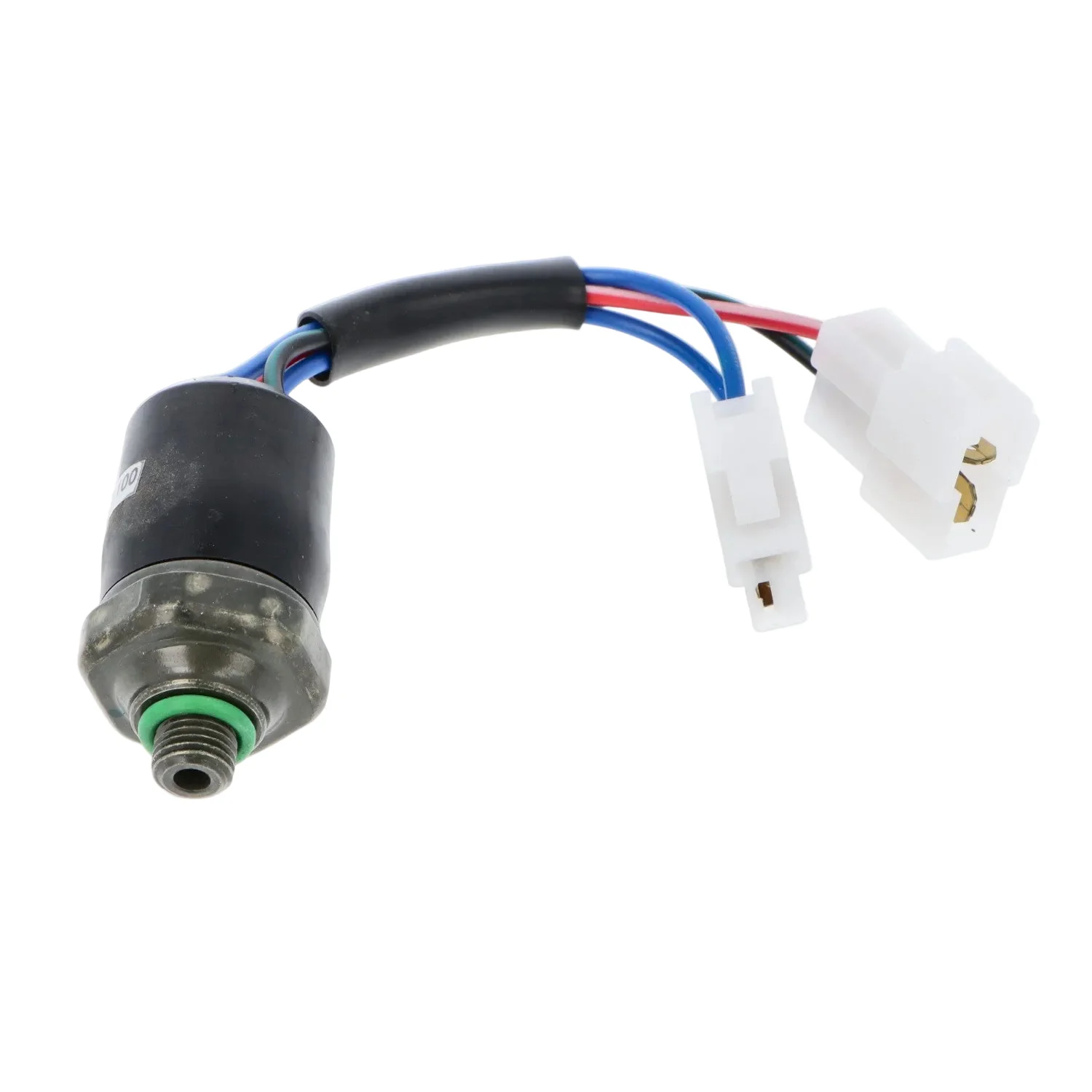

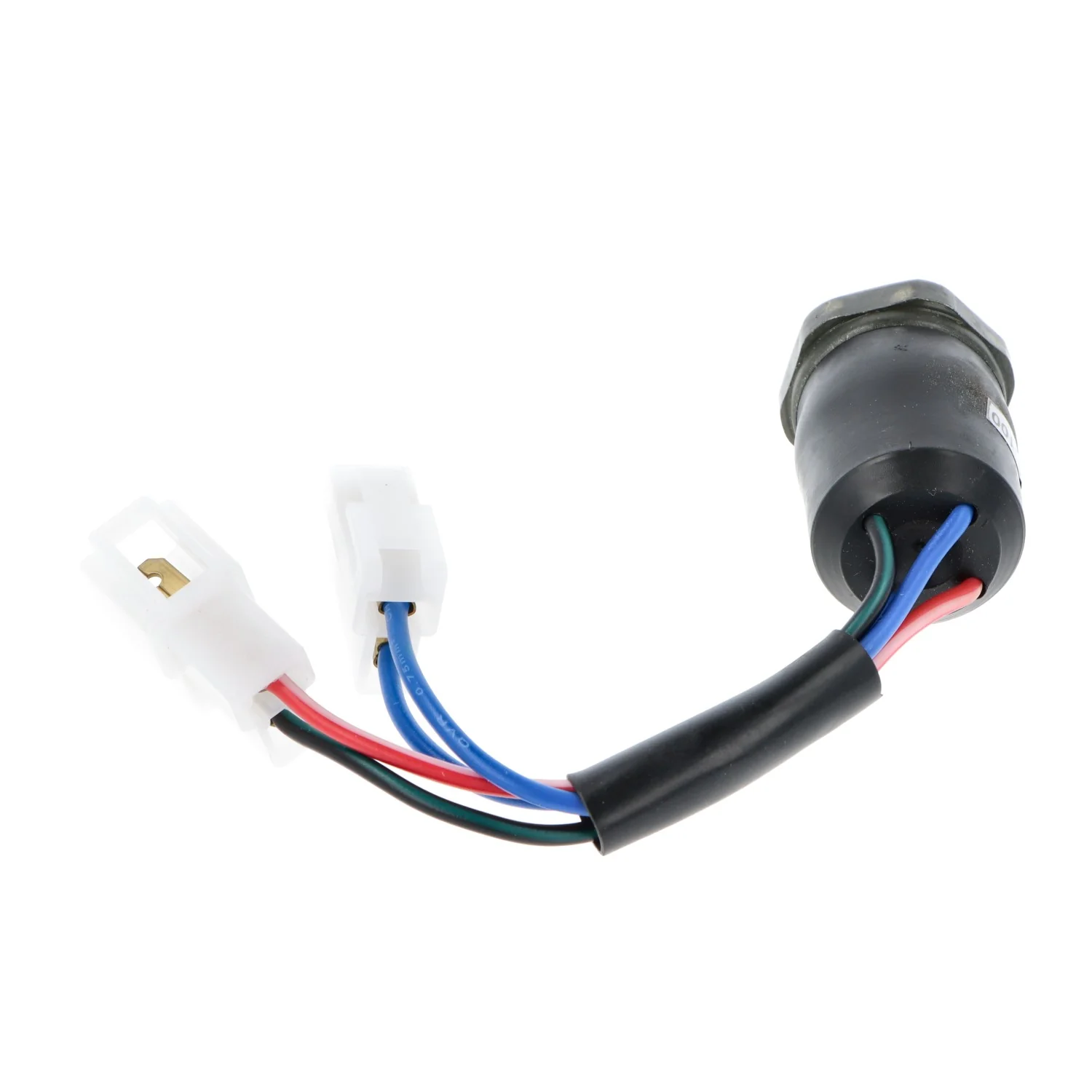

TRINARY SWITCH A three-function pressure switch for our Air Conditioning kit (Part no: #AIRCON)
The Blue wires will switch on a condensing-radiator fan (via a relay) whenever the Air-con is working and the other two wires provide a safety cut-out for the compressor if the pressure is either too high or too low.
Operating pressures: Low - 2Kg/Cm² Med. -16Kg/Cm² High - 24Kg/Cm²
100mm flyleads with 1/4" spade terminals.
Thread: 3/8 UNF
Weight 110gms
TRINARY SWITCH FOR AIR CONÂ #TRINARY
TRINARY SWITCH A three-function pressure switch for our Air Conditioning kit (Part no: #AIRCON)
The Blue wires will switch on a condensing-radiator fan (via a relay) whenever the Air-con is working and the other two wires provide a safety cut-out for the compressor if the pressure is either too high or too low.
Operating pressures: Low - 2Kg/Cm² Med. -16Kg/Cm² High - 24Kg/Cm²
100mm flyleads with 1/4" spade terminals.
Thread: 3/8 UNF
Weight 110gms
TRINARY SWITCH FOR AIR CONÂ #TRINARY
Description
TRINARY SWITCH A three-function pressure switch for our Air Conditioning kit (Part no: #AIRCON)
The Blue wires will switch on a condensing-radiator fan (via a relay) whenever the Air-con is working and the other two wires provide a safety cut-out for the compressor if the pressure is either too high or too low.
Operating pressures: Low - 2Kg/Cm² Med. -16Kg/Cm² High - 24Kg/Cm²
100mm flyleads with 1/4" spade terminals.
Thread: 3/8 UNF
Weight 110gms
TRINARY SWITCH FOR AIR CONÂ #TRINARY
