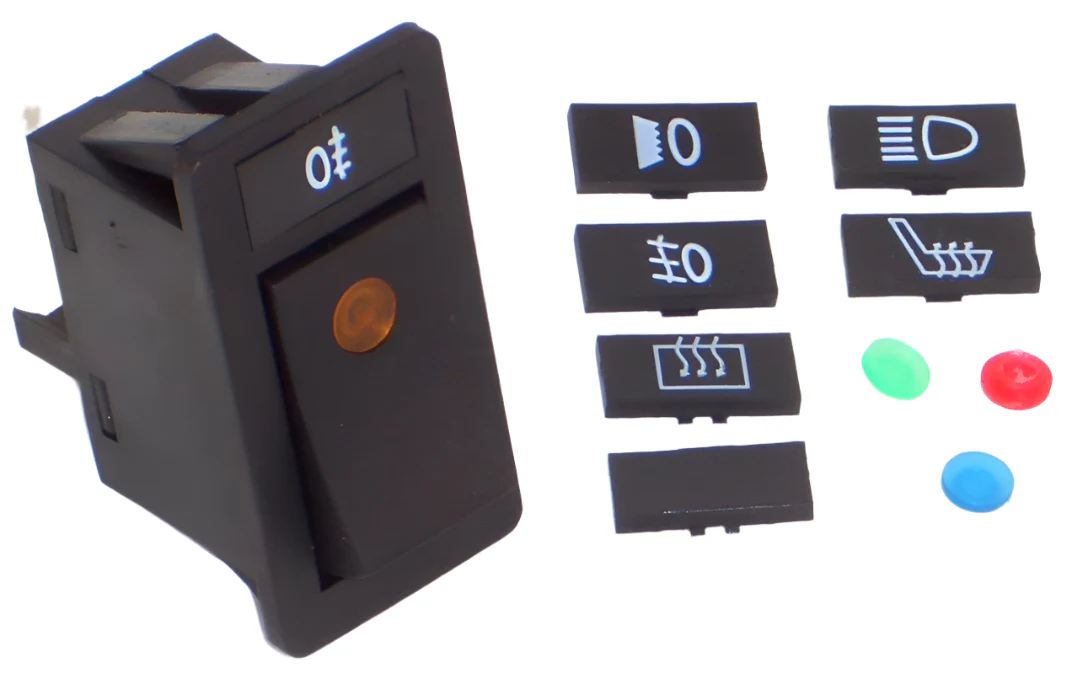

Universal Rocker Switch

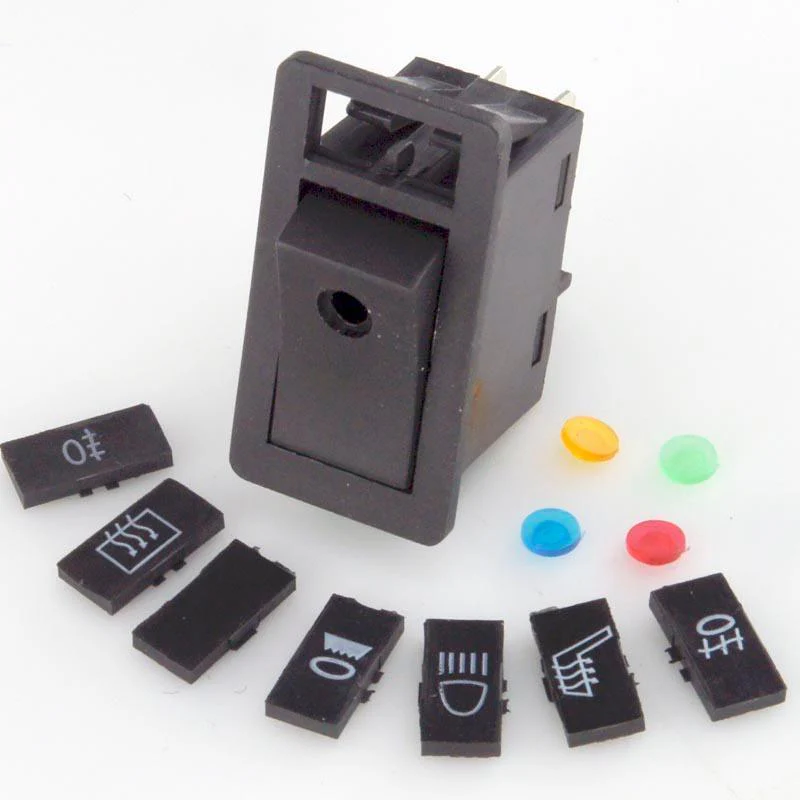

Interchangeable legends and coloured lenses for internal illumination.
Fits 19mm x 38mm hole. Best for panels 4mm thick.
20 Amp.Â
Bezel size 46 x 23mm.
Depth behind bezel 35mm.

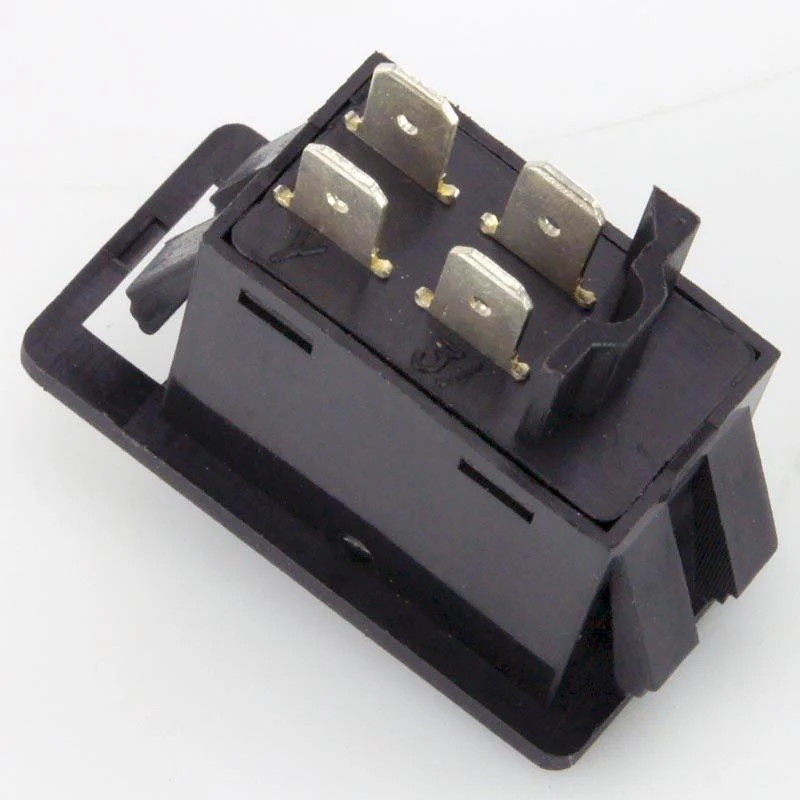

1/4" male spade terminals on rear.Â

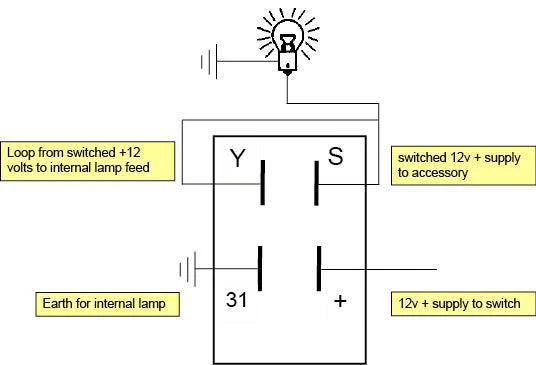

The diagram below shows an example of how to wire this switch to, for instance, a rear fog light. The internal warning light will illuminate only when the switch is in the 'ON' position.
